Roland - VersaStudio BN-20D Direct-to-Film

  • $6,495.00

Please log in or create an account in order to place an order.


VersaStudio BN-20D Direct-to-Film System

Product Brochure

BN-20D

A COMPLETE DIRECT-TO-FILM SYSTEM YOU CAN COUNT ON

With the VersaStudio BN-20D, you get the outstanding features and legendary reliability of Roland’s best-selling BN-20, plus the advantages of an integrated direct-to-film system. The BN-20D makes enhancing apparel with eye-catching graphics – even the most detailed designs, images and text – a simple, trouble-free process. Create eye-catching durable custom T-shirts and more in just four easy steps, with no weeding or masking required.

  • Simple direct-to-film process - transfer even detailed graphics and fine text quickly and easily without weeding or masking.
  • Complete direct-to-film solution featuring the BN-20D printer and available S-PG inks, S-F164 film, and S-Powder (each sold separately).
  • Unsurpassed reliability and minimal maintenance
  • When not being used for film transfer printing, the BN-20D can also serve as a stand-alone vinyl cutter.
  • Included VersaWorks 6 RIP software - Roland DG's most powerful, intuitive RIP to date.

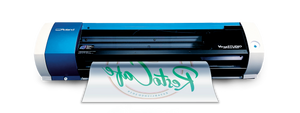

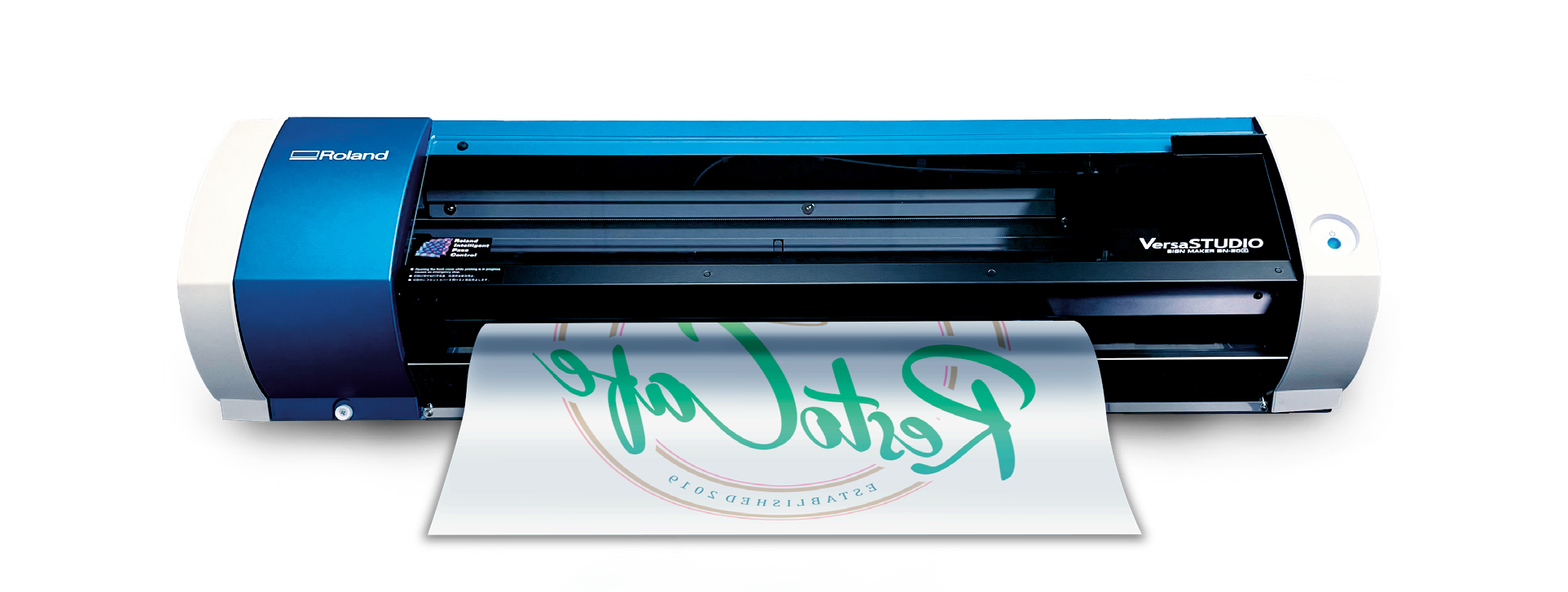

BN-20D Printer



Make Stunning Custom T-Shirts and Accessories

The BN-20D DIRECT-TO-FILM System lets you customize T-shirts and other apparel items with colorful, detailed graphics and text quickly and easily.

BN-20D Sample 1bn-20D sample 2



IN FOUR EASY STEPS

With a direct to film workflow, Roland DG's BN-20D Direct-to-Film System improves upon the process by combining tested materials with Roland DG reliability for a system that will consistently generate quality results time after time.

bn-20D stap 1bn-20D step 2bn-20D step 3bn-20D step 4



bn-20D Sample 5

VersaWorks

    Included VersaWorks 6 RIP Software

    BN-20D devices have been engineered to make print production easy for users of all skill levels. In addition to a simplified control panel operation, it includes VersaWorks 6 RIP software, with powerfully simple RIP production tools, for managing all your print and cut output.

    • HARLEQUIN RIP dual core engine and 64-bit native processing for enhanced speed and file handling.
    • Easy drag-and-drop interface allows you to quickly add jobs to the print queue.
    • Add cut lines directly in the RIP— change vector data into cut line data.
    • Integrated spot color libraries include Pantone and Roland DG Color libraries.
    • A variety of profiles designed for different types of application, enable high-quality print output without difficult settings.
    • Intuitive tiling, cropping, nesting and other features that have made VersaWorks the world’s favorite software RIP.

    BN-20D Direct-To-Film Specifications

    • Printing Method: Piezo ink-jet method
    • Media width: 5.9" to 20.3"
    • Thickness: Max 39 mil (1.0mm) with liner
    • Roll Diameter: Max 5.9"
    • Roll Weight: 13.2 lb max.
    • Printing Width: 18.9" max
    • Ink Set:CMYK+WH, 220ml
    • Print Resolution: 1440dpi max
    • Connectivity: USB 2.0
    • Power-saving features: Automatic Sleep Mode
    • Power Requirements: 120V, 90W 60HZ
    • Dimension: 39.7"W x 22.9"D x 11.5"H
    • weight: 79.4 lbs
    • Environment - printing: 68º to 90ºF - 35 to 80% RH
