Canon imagePROGRAF GP-2000/4000 Series Printer
Reimagine the Way You Print
Hit 99% of the colors in the
PANTONE® FORMULA GUIDE solid coated
imagePROGRAF GP Series Product Brochure

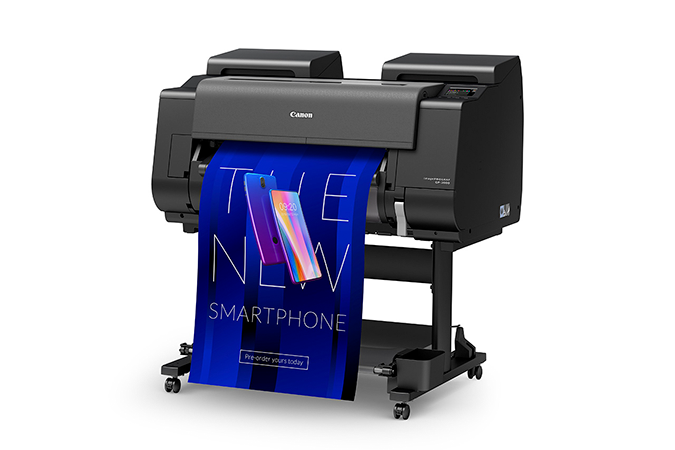

imagePROGRAF GP-2000/4000 Series Printer
The GP-Series printers are the world's first large format printer with aqueous pigment Fluorescent Pink Ink*. The GP-Series printers are an 10-color (MBK, BK, GY, C, M, Y, R, O, G, V) plus Fluorescent Pink large format printer. Equipped with Canon's unique Radiant Infusion which layers the newly developed Fluorescent Pink Ink with other inks on the paper surface during printing creating bright and soft color reproduction. With the new Red, Orange, Green, Violet, and Fluorescent Pink Inks, the imagePROGRAF GP-Series printers have the largest color gamut of any imagePROGRAF printer to date.
The imagePROGRAF GP-Series printers are the world's first "PANTONE Calibrated" Pantone licensed for "PANTONE PASTELS & NEONS GUIDE Coated", which includes fluorescent and pastel colors and can hit 99% of the colors in the PANTONE FORMULA GUIDE solid coated.
The Radiant Infusion technology is integrated into PosterArtist Lite software to allow users to create high impact posters easily. Additional software features include Professional Print & Layout, Accounting Manager and Device Management Console. This printer is ideal for supporting in-house production of large format prints with increased appeal and visibility in various industries such as retail, print for pay, entertainment industries, design offices and advertising agencies. Other features include built in color calibration, Intelligent Media Handling, and USB Thumb Drive printing.
The imagePROGRAF GP Series has obtained the world’s first "PANTONE Calibrated license for the PANTONE PASTELS & NEONS GUIDE coated" hitting 97% of the colors in this guide. These models also achieve 99% coverage of "PANTONE FORMULA GUIDE Solid Coated" which is used in a wide range of applications such as printing and design.
The built-in Color Calibration function uses a multisensor to read color density and calibrate the printer, so that the last print looks the same as the first.
INTELLIGENT MEDIA LOADING
The GP-2000 printer can load and recognize paper without the need for human intervention. Simply set the roll holder in the printer and let the media automatically feed into the print. The built-in multi-sensor automatically detects the width, length, and type of the media.
OPTIONAL MULTIFUNCTION ROLL
The optional Multifunction Roll System, which also utilizes Canon's new intelligent media handling, is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or the unit can be configured as a bi-directional media Take-up unit. Dual –Roll Feeding: The dual-roll feeding mechanism enables users to load a second roll of a different media type and size so that users can simultaneously switch from printing on matte to gloss paper without pausing their work to reload. Additionally, the second roll can be used to support high-volume printing be enabling two rolls of the same media to be fed to the printer. Bi-Directional Rewinding: The Multifunction Roll System may also be configured by the operator as a take-up unit to rewind longer printouts. The user can choose to rewind media with the printed surface on the outside or the inside of the roll, thereby supporting “bi-directional rewinding”
The GP-2000 features a 4.3" color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
PRINT FROM USB DRIVE
PDF and JPEG files can be directly printed on the imagePROGRAF GP-2000 from a USB thumb drive. Simply input the thumb drive into the USB port on the printer, preview the image on the operation panel, and print! Fast and easy printing without the use of a computer.
500GB HARD DRIVE
A built-in 500 GB hard drive within the printer increases productivity by relieving workload from the host Mac or PC, while providing a large capacity for print job data storage and retrieval. This 500 GB hard drive enables job data to be stored in protected mailboxes for easy access via web browser or at the printer for job re-printing. The embedded hard disk is ideal for medium to large workgroups to share a printer efficiently with multiple users, offering sample job storage space..
Stay Connected. Wi-Fi connectivity is standard with the GP Series printers.
SUB-INK TANK SYSTEM
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
Developed with advanced security features, including support of secure PIN printing to protect data and the ability to disable printing, increasing administrative control of end-user printing.
PF-10) PRINT HEAD
The PF-10, a 1.28”-wide print head with 18,432 nozzles equipped with anti-clogging FINE technology, generates fast print speeds while reducing the possibility of clogging. Ink ejection conditions are precisely checked by 27 sensors, and if a clog is detected, another nozzle will provide back-up. Having only one print head means a more compact printer that achieves faster print speeds while maintaining high print quality
|Printer Type||10-Color plus Fluorescent Pink|
|Number of Nozzles||
All Colors: 1,536 nozzles
|Min Droplet Size||
4 Picoliters per color
2400 x 1200dpi (Max)
32bit: Windows (Vista/7/8/8.1/10)
64bit: Windows (Vista/7/8/8.1/10)
Mac (OS X 10.7.5-10.11)
USB 2.0 High-Speed
10/100/1000 Base-T/TX, Wireless(IEEE802.11 b/g/n)
|Ink Droplet Size||
Minimum 4 picoliter
160ml, 330ml, 700ml per Color
|Ink Set Type||
Pigment based LUCIA PRO Ink
PK, MBK, C, M, Y, PC, PM, G, PG, R, B, FP
|Media Thickness||Roll: 2.8 - 31.5 mil|
GP-2000: 46"H x 43.7"W x 38.7"D
GP-4000:46"H x 62.7"W x 38.7"D
Pro-2100: 223 lbs
Pro-4100: 271 lbs
AC100-240V (50-60 Hz)
Pro-2100: Max 88W, Standby 3.6W
Pro-4100: Max 112W, Standby 3.6W
Temperature: 59 - 86°F
Relative Humidity: 10-80%(No Condensing)
Print Head (PF-10)
Ink Tanks: PFI-2300/2700
Product of Thailand
