Graphtec FC8600 Blades & Blade Holders


Please log in or create an account in order to see price information or "Add to Cart" button

Graphtec FC8600 Blades and Holders



CB09UB-2

CB09UB-5

Angle 45° Diameter 0.9mmStandard blade for vinyl cutting, and self-adhesive marking film (PVC film), up to 0.25 mm thick. The maximum cutting distance is approximately 13,123 Feet.

Available in 2/pkg or 5/pkg

CB09UB-K60-2

CB09UB-K60-5

Angle 30° Diameter 0.9mm Supersteel Blade for cutting the window tint film or thin film, up to 0.25 mm thick.

Available in 2/pkg or 5/pkg

CB15U-2

CB15U-5

Angle 45° Diameter 1.5mm Supersteel blade for cutting rigid or thicker media, 0.25 mm to 0.5 mm thick. (laminates, smart device, device screen protection media)

Available in 2/pkg or 5/pkg

CB15UA-2

CB15UA-5

Angle 45° Diameter 1.5mm Supersteel Blade for cutting high-intensity reflective film or harder film. Available in 2/pkg or 5/pkg

Available in 2/pkg or 5/pkg

CB15U-K30-2

CB15U-K30-5

Angle 60° Diameter 1.5mm Supersteel Blade for cutting rigid media, 0.25 mm to 0.5 mm thick. And also small detailed characters on marking film (up to 0.25mm). Recommended blade for sandblast rubber resist media cutting and high intensity reflective sheeting.
NOTE: USA 60° Japan 30°

Available in 2/pkg or 5/pkg

CB15UA-K30-2

CB15UA-K30-5

Angle 60° Diameter 1.5mm Supersteel Blade for cutting rigid media, 0.25 mm to 1.5 mm thick. And also small detailed characters on marking film (up to 0.25mm). Recommended blade for sandblast rubber resist media cutting and high intensity reflective sheeting.
NOTE: USA 60° Japan 30°

Available in 2/pkg or 5/pkg

CT01H

Cross Cutter Standard blade

CT02U

Cross Cutter Supersteel Blade

PHP31-FIBERSTEADLER

FIBERSTEADTLER Lumocolor holder.

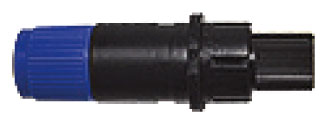

PHP33-CB09N-HS

Built-in Spring Type

Compatible with blades: CB09UB, CB09UB-K60 0.9mm, blue top, black ABS tip. Not recommended for CB09UA blades with springs.

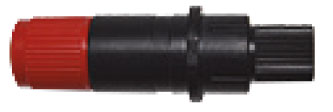

PHP33-CB15N-HS

Built-in Spring Type

Compatible with blades: CB15U, CB15U-K30*, CB15UA, CB15U-K20-2SP, CB15UA-K30

1.5mm**, red top, black ABS tip.

PHP34-BALL

Ballpoint pen holder for black, oil based pen (KB700-BK)

PHP35-CB09-HS

Built-in Spring Type

Compatible with blades: CB09UB, CB09UB-K60

0.9mm, blue top, black brass tip. ATTENTION: If you are using CB09UA Blade (with spring); Insert only the CB09UA blade without the spring. This blade-holder, plunger design already includes an internal spring. These brass tip blade-holders, plungers are more rigid and lend to more accurate cutting.

PHP35-CB15-HS

PHP35CB15N-HS

Built-in Spring Type

Compatible with blades: CB15U, CB15U-K30*, CB15UA, CB15U-K20-2SP, CB15UA-K30

1.5mm**, red top, black brass tip. These brass tip blade-holders/plungers are more rigid and lend to more accurate cutting. NOTE: REMOVE CB15 SP Blade spring before installing into this Blade-holder. DO NOT install any blade spring.
