Product Data Sheet

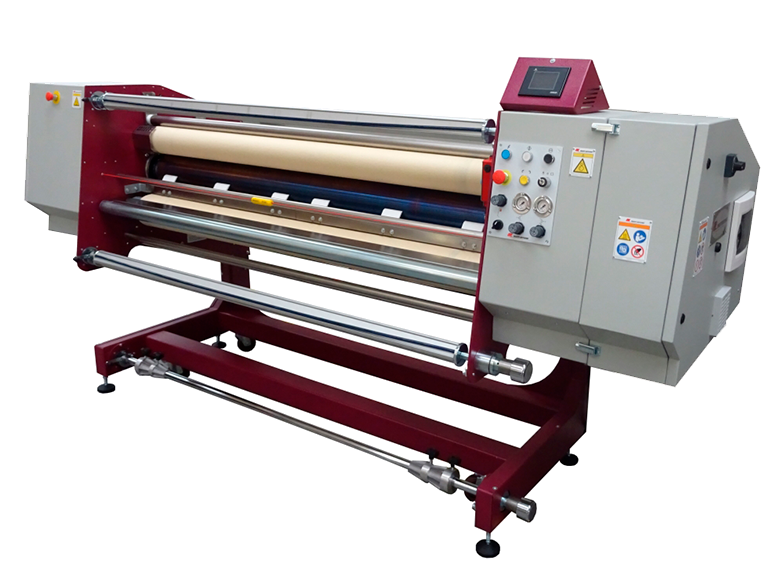

Calendar Heat Press for Roll-to-Roll operations

• Transfer Printing

• Direct Ink Reactivation
• Thermosetting
• Drum Diameter: 200mm (7.87")
• Drum Width: 1800mm
• Working Width: 1650mm (65")
• Vacuum Sealed Oil Bath Cylinder
• NOMEX Belt with pneumatic tension control
• Automatic belt protection to protect loss of power
• Maximum Temperature (230ºC)
• Installed Power: 10kW

• Mechanical Speed: 0.1 - 1.7 m/min
• Dimensions: 122" W x 39" D x 63" H
