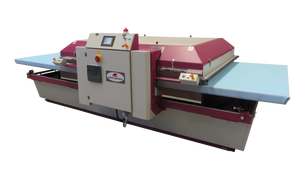

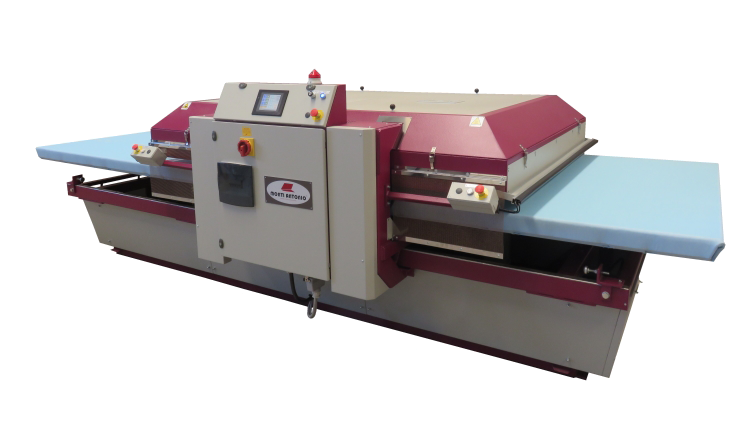

Monti Antonio Model P20
Watch the Model P20 in action
Product Data Sheet
Double Hydraulic Heat Press for Transfer Printing and Laminating
- Transfer Printing with Vacuum for deeper ink penetration
- Thermosetting - Heatsetting
- Thermobonding Film/Web
- Plastification and Coating with Film
- Metallization and Gold Lamination
- Dual Platens
- Hydraulic Pressure
- Table Dimension Sizes Available:
- 1800mm x 1300mm x 2
- 2000mm x 1500mm x 2
- 2250mm x 1600mm x 2
- 2600mm x 1600mm x 2
- 3100mm x 1600mm x 2
- 3600mm x 1600mm x 2
- 4050mm x 1600mm x 2
- 5200mm x 2200mm x 2
- Working dimension perimeter limit - 30mm -50mm per side
- Manual,Semi-Automatic or Automatic Functions
- Motorized movement of platen
- Automatic and Recordable Stroke Times
- Maximum Temperature (230ºC)
- Installed Power: 20.5 - 85kW
- Dimensions: 66" W x 75" D x 49" H
