Product Data Sheet

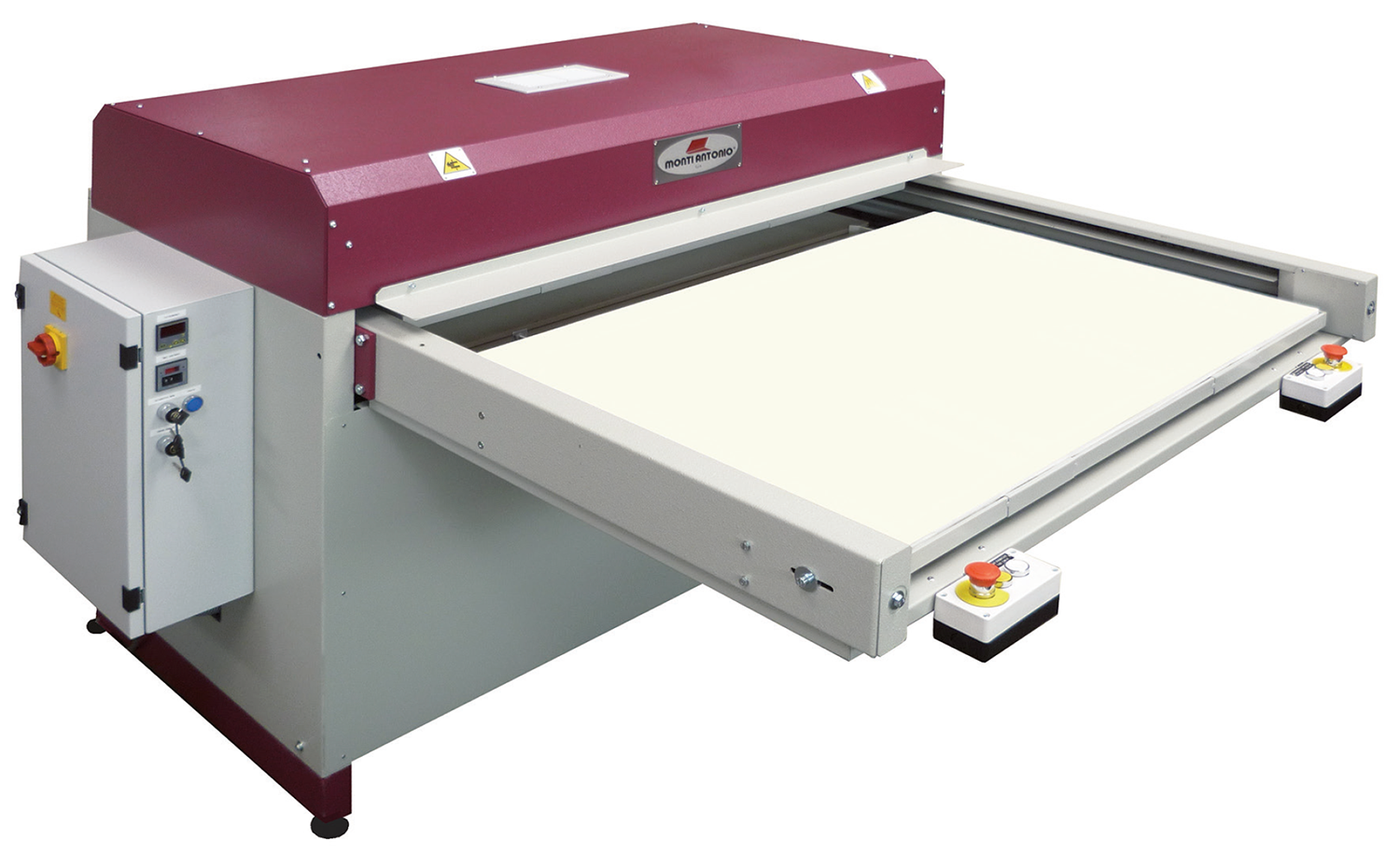

Pneumatic Heat Press for Printing and Laminating

• Transfer Printing

• Thermosetting - Heatsetting
• Thermobonding Film/Web
• Plastification and Coating with Film
• Metallization and Gold Lamination
• Dual Platens

• Table Dimension: 11700mm x 750mm  (46" x 29")
• Working dimension perimeter limit - 30mm per side
• Manual or Semi-Automatic Functions
• Automatic and Recordable Stroke Times
• Maximum Temperature (230ºC)
• Installed Power: 6.5kW
• Dimensions: 66" W x 75" D x 49" H
