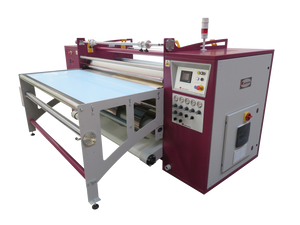

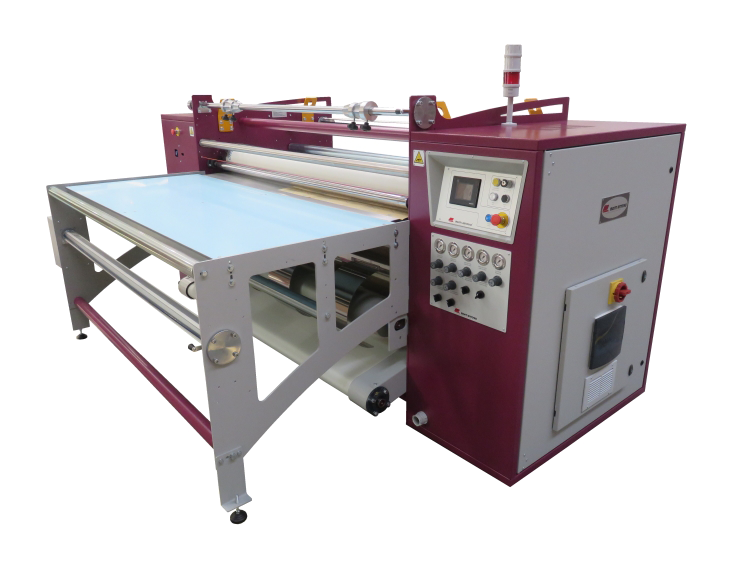

Monti Antonio Model 856

Monti Antonio Model 856



Please contact us if you are interested in purchasing this product.


Model 856

Model 856

Product Data Sheet


Calendar Heat Press for Roll-to-Roll or Roll-to-Piece operations

  • Transfer Printing
  • Direct Ink Reactivation
  • Thermosetting
  • Drum Diameter: 350mm (13.78")
  • Drum Width: 1800mm
  • Working Width: 1650mm (65")
  • Vacuum Sealed Oil Bath Cylinder
  • NOMEX Belt with pneumatic tension control
  • Automatic belt protection to protect loss of power
  • Maximum Temperature (230ºC)
  • Feed Table: 800mm (31.5")
  • Installed Power: 20kW
  • Mechanical Speed: 0.3 - 4 m/min
  • Dimensions with table: 125.5" W x 94.4" D x 57" H
