Monti Antonio

Print United Show Special

Product Data Sheet

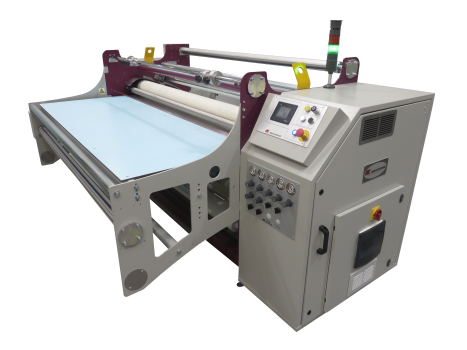

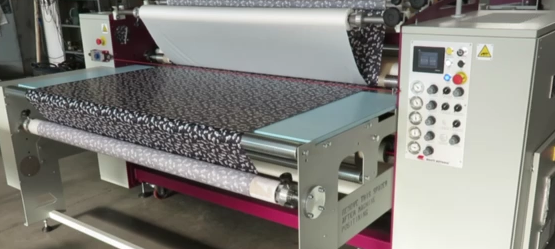

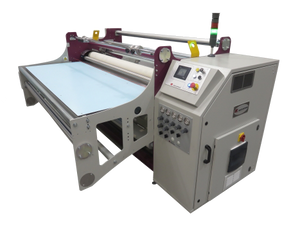

Calendar Heat Press for Roll-to-Roll or Roll-to-Piece operations

  • Transfer Printing
  • Direct Ink Reactivation
  • Thermosetting
  • Drum Diameter: 500mm (19.69")
  • Drum Width: 2000mm
  • Working Width: 1800mm (70.87")
  • Vacuum Sealed Oil Bath Cylinder
  • NOMEX Belt with pneumatic tension control
  • Automatic belt protection to protect loss of power
  • Maximum Temperature (230ºC)
  • Feed Table: 1200mm
  • Installed Power: 26kW
  • Mechanical Speed: 0.5 - 7.5 m/min
  • Dimensions with table: 134" W x 128" D x 67" H
