Product Data Sheet

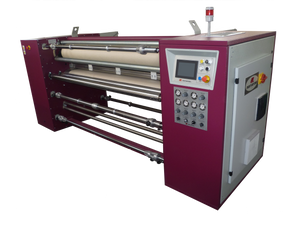

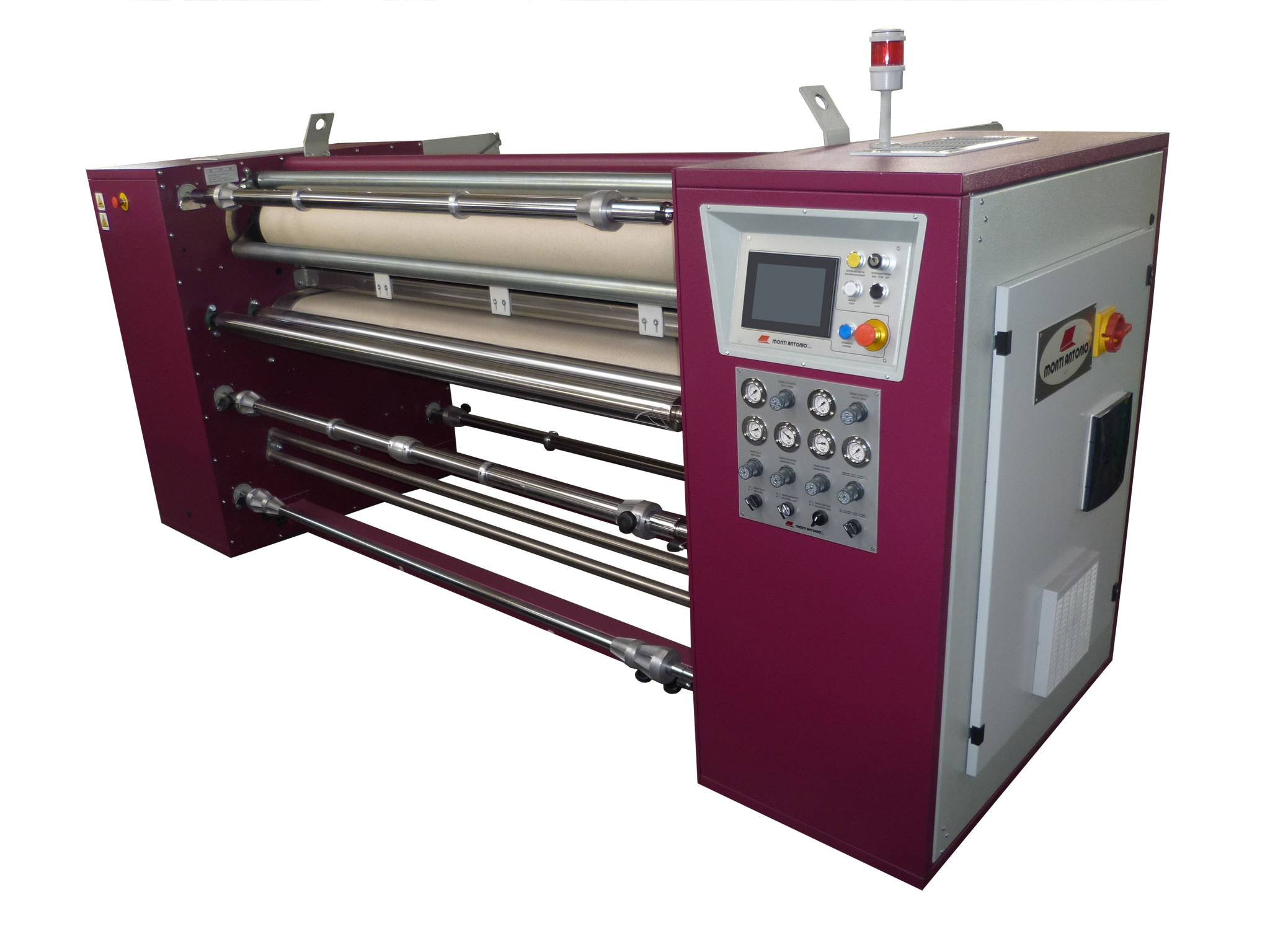

Calendar Heat Press for Roll-to-Roll operations

• Transfer Printing

• Direct Ink Reactivation
• Thermosetting
• Drum Diameter: 350mm (13.78")
• Drum Width: 2000mm, 2600mm, 3000mm, 3600mm
• Working Width: 1800mm, 2400mm, 2800mm, 3400mm
• Vacuum Sealed Oil Bath Cylinder
• NOMEX Belt with pneumatic tension control
• Automatic belt protection to protect loss of power
• Maximum Temperature (230ºC)
• Installed Power: 16kW - 19kW

• Mechanical Speed: 0.3 - 4 m/min
• Dimensions 901-2000: 134" W x 59" D x 56" H
• Dimensions 901-2600: 160" W x 59" D x 56" H
• Dimensions 901-2800: 175" W x 59" D X 56" H
• Dimensions 901-3600: 198" W x 59" D x 56" H
