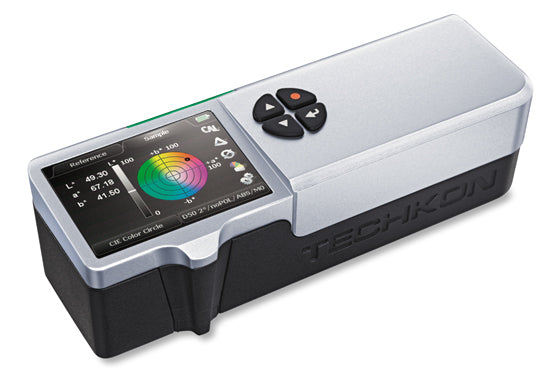

Techkon SpectroDens

SpectroDens Spectro-Densitometer

Shipping calculated at checkout.

Please contact us if you are interested in purchasing this product.

Product Brochure

The Fastest & Easiest Way to Control Color and Density

Techkon’s SpectroDens delivers unbeatable measurement accuracy and repeatability over time. And it’s the most ergonomic device on the market. That’s why operators consistently prefer the SpectroDens to the cumbersome, slow, clamshell style devices they have used in the past.

SIX reasons YOU NEED the SpectroDens

  1. STANDARDS COMPLIANCY: The SpectroDens includes full support for ISO and G7® methodologies, and fulfills M0, M1, M2, M3 measuring conditions in accordance to ISO 13655.
  2. SPEED: The innovative measurement head allows a single spot measurement approximately every 1 second while the patented, side-aperture design lets you easily position the optics over the desired measurement location for even faster operation.
  3. ACCURACY: The high-resolution spectral engine enables spectral sampling in 10 nm intervals from 400 nm to 700 nm
  4. VERSATILITY: Seamlessly switch between spot measurements and color bar scanning up to 43-inches long, with the push of a button, and without the need for additional accessories.
  5. ERGONOMICS: As well as being comfortable and easy to use, no moving parts means the solid state spectral engine can deliver unbeatable measurement accuracy and repeatability over time
  6. 2018 INTERTECH AWARD WINNER: The judges liked its unique “combination of super-fast measurement
    speeds, heightened intelligence, and a built-in mode for color bar scanning” and concluded they
    “foresee SpectroDens4 becoming the spectrophotometer of choice in many pressrooms.”

Looking for a Total Print Color Quality Solution

Techkon SpectroDenitometerIn an industry with razor thin margins, it’s easy to see why faster make ready times and substantial savings in ink and paper are simply good for business. Customers need accurate colors and consistent colors, and they know what’s possible with today’s technology. Many even ask for proof that their color specifications have been met. ChromaQA is enabling printers of all sizes to meet these demands and more.

Spectrodens Highlights

QUICK MEASUREMENT OF PROCESS AND SPOT COLORS
Control your process, spot, Pantone® or other critical brand colors by measuring solid ink density, % dot area, CIE Lab, deltaE, and more.
TRACK DENSITIES ACROSS SHEET
Shows density variation across press sheet and provides specific ink key adjustments right on instrument display.
BEST COLOR MATCH
InkCheck™ feature helps press operators minimize color differences (deltaE’s) by providing specific density adjustments to achieve best possible color matches.
SPOT AND SCAN MEASUREMENT IN SAME DEVICE
Switch from spot measurements to color bar scanning with the touch of a button. Scan color bars up to 43-inches long in only 10 seconds (200 patch maximum); no guide required, 4 wheels keep straight alignment while scanning.
ACHIEVE G7 COMPLIANCE
GrayGuide™ feature displays G7 pass/fail indication and specific C,M,Y density adjustments to obtain grayscale values according to G7 specification.
SCAN MEDIA WEDGE FOR QUICK PROOF VERIFICATION
Scan control wedge in seconds to confirm proofs against 12647-7 and known datasets like GRACol, SWOP3, SWOP5, IFRA, UGRA/FOGRA, G7™, etc.
DESKTOP SOFTWARE INCLUDED
Create, edit, and manage color libraries, import/export color data, generate pass/fail QC reports, and manage instrument, all with SpectroConnect.
TAILORED TO MEET YOUR NEEDS
The SpectroDens is available in 3 different models to best meet your color measurement needs (model comparison below).
HIGH-RESOLUTION & NIST TRACEABLE
Spectral sampling in 10 nm intervals from 400 nm to 700 nm fully complies with ISO-13655 requirements.
SOLID ALUMINUM UNIBODY CASE
The unibody case is machined from a single block of aluminum to maximize durability and reliability in harsh production environments.
