VersaStudio BN-20, BN-20A

  • $6,795.00

Please log in or create an account in order to place an order.

VersaStudio BN-20, BN-20A

Product Brochure

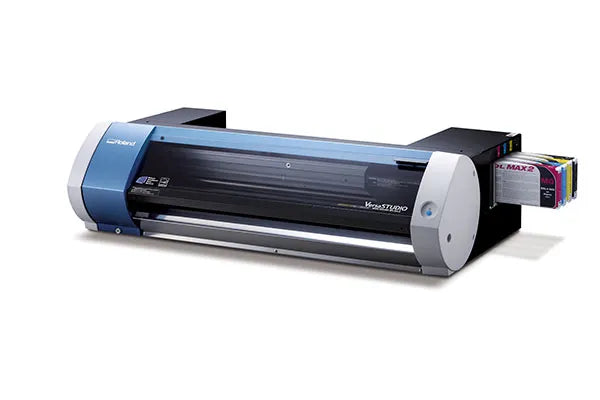

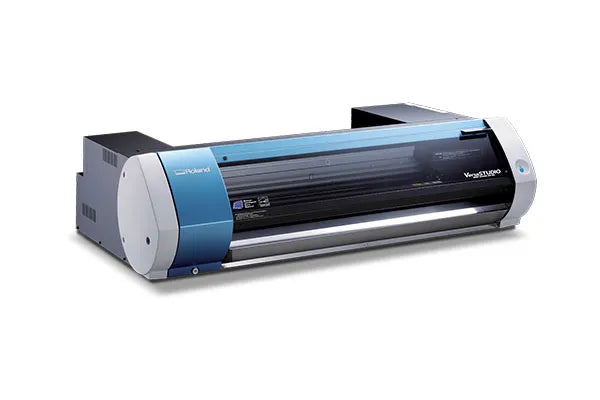

Roland BN-20

Desktop Inkjet Printer/Cutters

Start building a t-shirt, poster, sticker, and decal graphics printing business, all from the comfort of your desktop. With the VersaSTUDIO BN-20 t shirt graphic printing & cutting machine, you can print, cut, and create super high-quality graphics without the super high price tag.

  • Easily the most versatile print devices in their class— print and cut on a huge range of vinyl, films, and media.
  • In addition to traditional graphics, you can create heat transfer graphics for jerseys, hoodies, bags and more.
  • Unsurpassed reliability and minimal maintenance
  • Legendary Roland DG machine reliability combines with exceptional image quality and color to give you the solution you need to succeed.




Create Print and Cut Graphics

Not only do BN-20 devices print quality graphics up to 1440 dpi, but they can automatically contour cut them as well! This means you can create labels, decals, t-shirt transfers and other products that are cut to the unique compositions of your designs.

A state-of-the-art cutting operation provides consistent results and isn’t prone to the problems inherent in craft cutter devices with simple up/down electronic controls. Instead, they ensure super-crisp cutting results on a huge diversity of products— supporting rolls up-to 20-inches wide by 50 ft. and weighing up-to 13 lbs.

BN-20 sample 1BN-20 sample 2BN-20 sample 3

Produce and Profit from Graphics with the BN-20

BN-20 devices are perfect for prints, posters and stickers and producing on-demand, heat transfer custom graphics for t-shirts, hoodies, bags and many more popular and profitable items.


    Included VersaWorks 6 RIP Software

    BN-20D devices have been engineered to make print production easy for users of all skill levels. In addition to a simplified control panel operation, it includes VersaWorks 6 RIP software, with powerfully simple RIP production tools, for managing all your print and cut output.

    • HARLEQUIN RIP dual core engine and 64-bit native processing for enhanced speed and file handling.
    • Easy drag-and-drop interface allows you to quickly add jobs to the print queue.
    • Add cut lines directly in the RIP— change vector data into cut line data.
    • Integrated spot color libraries include Pantone and Roland DG Color libraries.
    • A variety of profiles designed for different types of application, enable high-quality print output without difficult settings.
    • Intuitive tiling, cropping, nesting and other features that have made VersaWorks the world’s favorite software RIP.

    BN-20/BN-20A Specifications

    • Printing Method: Piezo ink-jet method
    • Media width: 5.9" to 20.3"
    • Thickness: Max 39 mil (1.0mm) with liner
    • Roll Diameter: Max 5.9"
    • Roll Weight: 13.2 lb max.
    • Printing Width: 18.9" max
    • Ink Set BN-20:CMYK+WH, 220ml
    • Ink Set BN-20A: CMYK, 220ml
    • Print Resolution: 1440dpi max
    • Connectivity: USB 2.0
    • Power-saving features: Automatic Sleep Mode
    • Power Requirements: 120V, 90W 60HZ
    • Dimension: 39.7"W x 22.9"D x 11.5"H
    • weight: 79.4 lbs
    • Environment - printing: 68º to 90ºF - 35 to 80% RH
